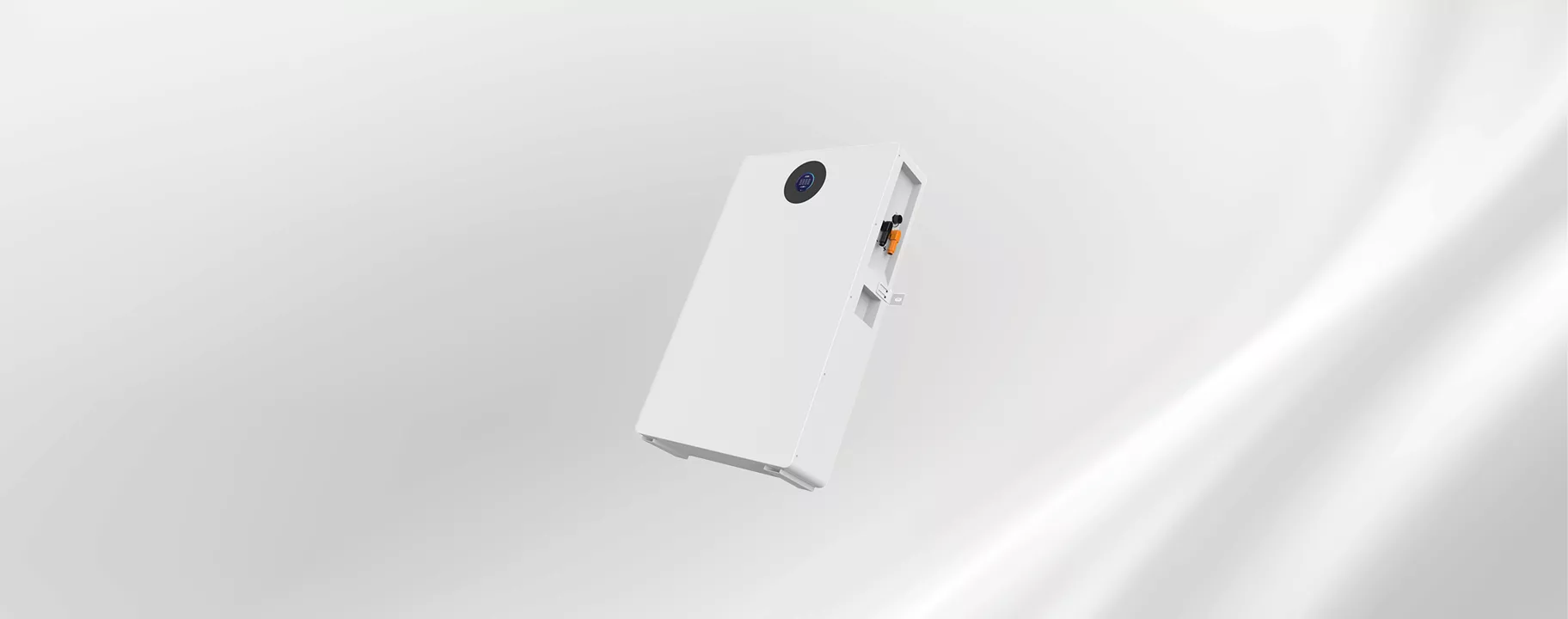

- YFSR-5.12kWh
- YFYD-15.36kWh
- YFYD-20.48kWh
Main Specification Click on the product image to visit the store!
Rated Voltage: 51.2V
Rated Capacity: 100Ah
Battery Energy: 5.12kWh
Battery Type: Lithium Iron Phosphate
Battery Cycle Life: 6000 cycles (80% Depth of Discharge, 0.5C, 25°C)
Service Life: 20 years
Max. Parallel Quantity: 9 units
Charge/Discharge
Maximum Charging Voltage: 57.6V
Overcharge Voltage: 44.8V
Max. Charging Current: 100A (1C)
Max. Discharging Current: 100A (1C)
Peak Charging Current: 110A (1.1C, 3s)
Peak Discharging Current: 110A (1.1C, 3s)
Basic Information
Weight: 47kg (103.6lb)
Dimensions (L*W*H): 460*100*725mm (1.51*0.33*2.38ft)
Communication Interface: CAN/RS485/USB/WiFi/Bluetooth
Storage Conditions: 25℃ for 6 months / 35℃ for 3 months / 45℃ for 1 month
Charging Temp. Range: 0~45℃ (32~113℉)
Discharging Temp. Range: -10~45℃ (14~113℉)
Cooling Method: Natural Air Cooling
Standards & Certificates
Transportation Standards: UN38.3, MSDS
Safety Certificates: IEC62619:2017, EN IEC 61000-6, UL1973
Battery System Click on the product image to visit the store!
Nominal Capacity: 15.36kWh
Usable Capacity: 14.58kWh
Nominal Voltage: 307.2V
Operating Voltage: 273.6-345.6V
Charging Voltage: 336V
Max. Charging Current: 25A
Max. Discharging Current: 40A
Weight: 165kg
Dimensions: 636*330*816mm
Service Life: 15 years (25℃)
Expandability: Up to 8 units in parallel
Battery Module
Battery Type: Lithium Iron Phosphate Battery
Nominal Capacity: 5.12kWh
Usable Capacity: 4.86kWh (95% Depth of Discharge)
Nominal Voltage: 102.4V
Operating Voltage: 91.2~115.2V
Charging Voltage: 112V
Max. Charging Current: 25A
Max. Discharging Current: 40A
Communication: RS485/CAN
Storage Temperature: 0℃~45℃ (Recommended)
Storage Humidity: ≤85% (RH)
Operating Temp.: Charging: -10℃~50℃ / Discharging: -20℃~50℃
Operating Humidity: ≤95% (RH) Non-condensing
Operating Altitude: ≤2000m
Built-in Protection: IP55
Protection Class: 1
Weight: 48kg
Dimensions: 636*330*188mm
Service Life: 15 years (25℃)
Cycle Count: >6000 (25℃), 60% EOL
Expandability: Up to 8 units in parallel, 327.68kWh
Certifications: CE, IEC62619, IEC63056, IEC/EN61000-6-2/3, UN38.3
Battery System Click on the product image to visit the store!
Nominal Capacity: 20.48kWh
Usable Capacity: 19.44kWh
Nominal Voltage: 409.6V
Operating Voltage: 364.8~460.8V
Charging Voltage: 448V
Max. Charge Current: 25A
Max. Discharge Current: 40A
Weight: 213kg
Dimensions: 636*330*1004mm³
Service Life: 15 years (25℃)
Expandability: Up to 8 units in parallel.
Battery Module
Battery Type: Lithium Iron Phosphate Battery
Nominal Capacity: 5.12kWh
Usable Capacity: 4.86kWh (95% Depth of Discharge)
Nominal Voltage: 102.4V
Operating Voltage: 91.2~115.2V
Charging Voltage: 112V
Max. Charge Current: 25A
Max. Discharge Current: 40A
Communication: RS485/CAN
Storage Temp.: 0℃~45℃ (Recommended)
Storage Humidity: ≤85% (RH)
Operating Temp.: Charging: -10℃~50℃ / Discharging: -20℃~50℃
Operating Humidity: ≤95% (RH) Non-condensing
Operating Altitude: ≤2000m
Built-in Protection: IP55
Protection Class: 1
Weight: 48kg
Dimensions: 636*330*188mm
Service Life: 15 years (25℃)
Cycle Count: >6000 (25℃), 60% EOL
Expandability: Up to 8 units in parallel, 327.68kWh
Certifications: CE, IEC62619, IEC63056, IEC/EN61000-6-2/3, UN38.3
